One touch!

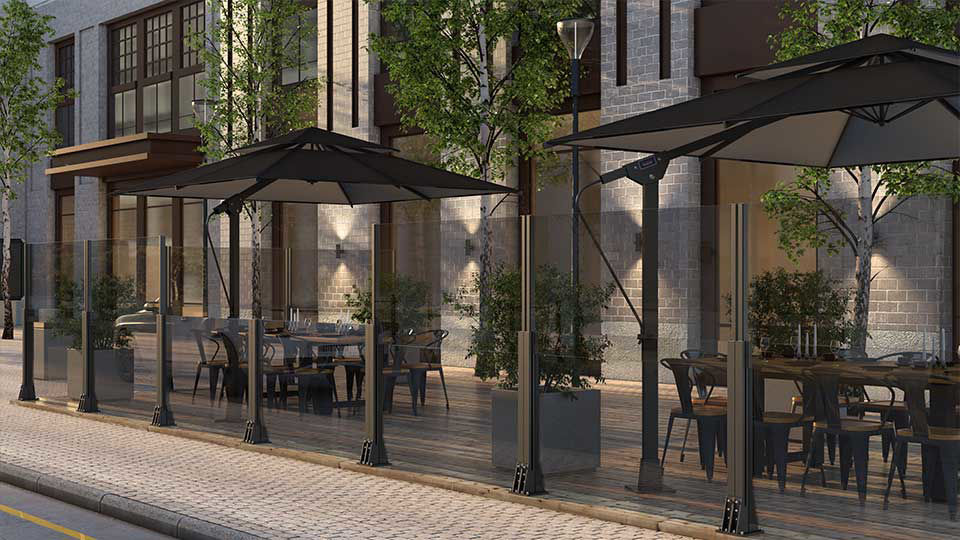

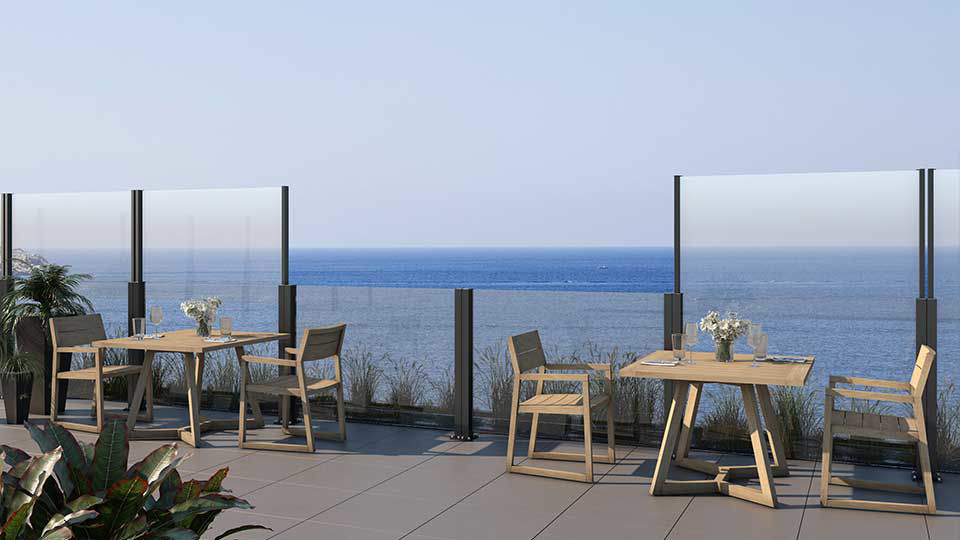

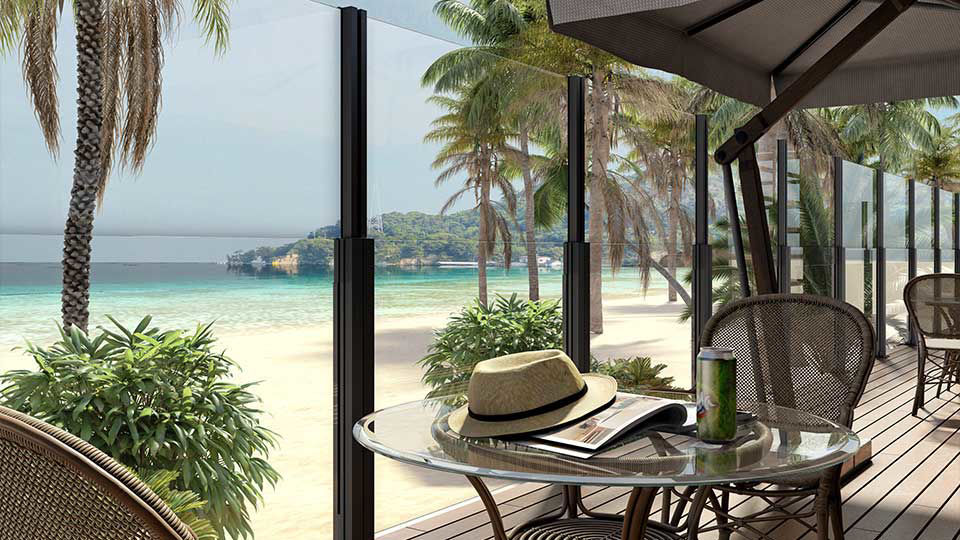

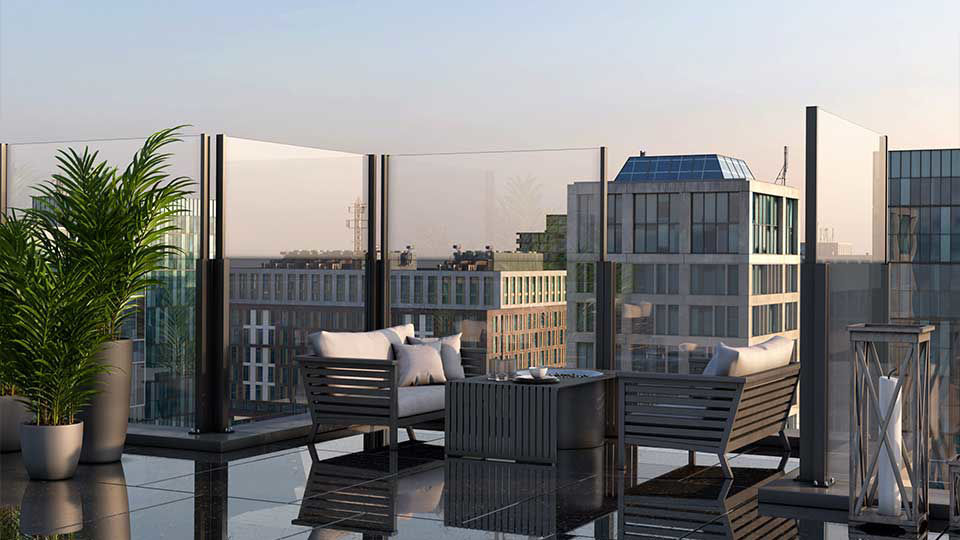

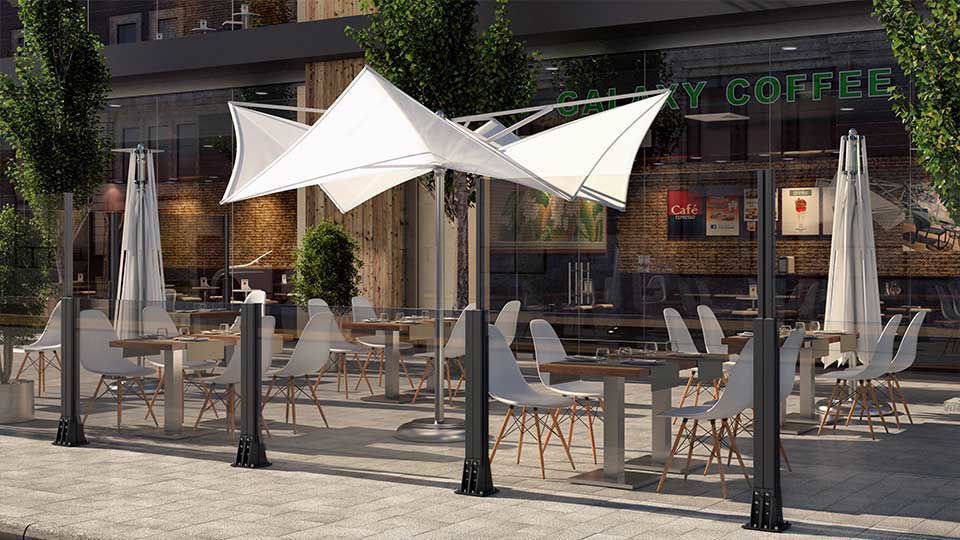

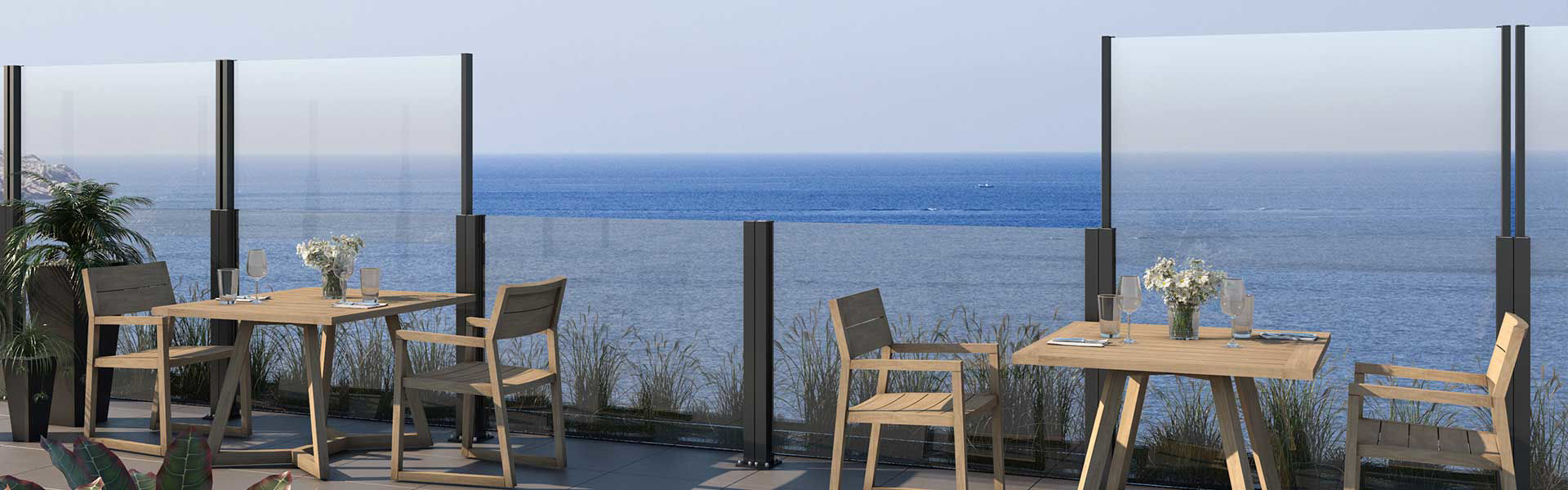

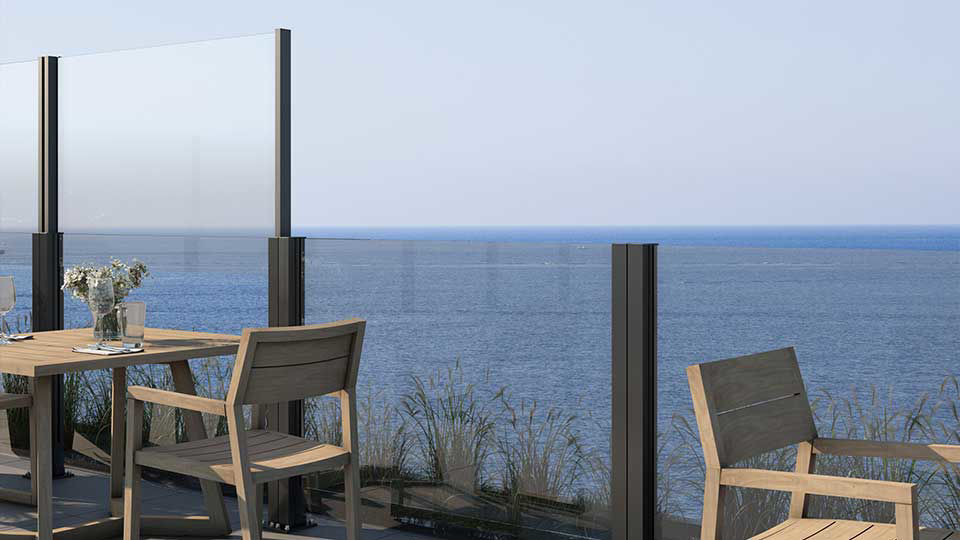

WindStop Smart, produced as a ready-made panel, creates a wind shield that can rise up to 190 cm with a single touch with its strong frame structure and safety glasses.

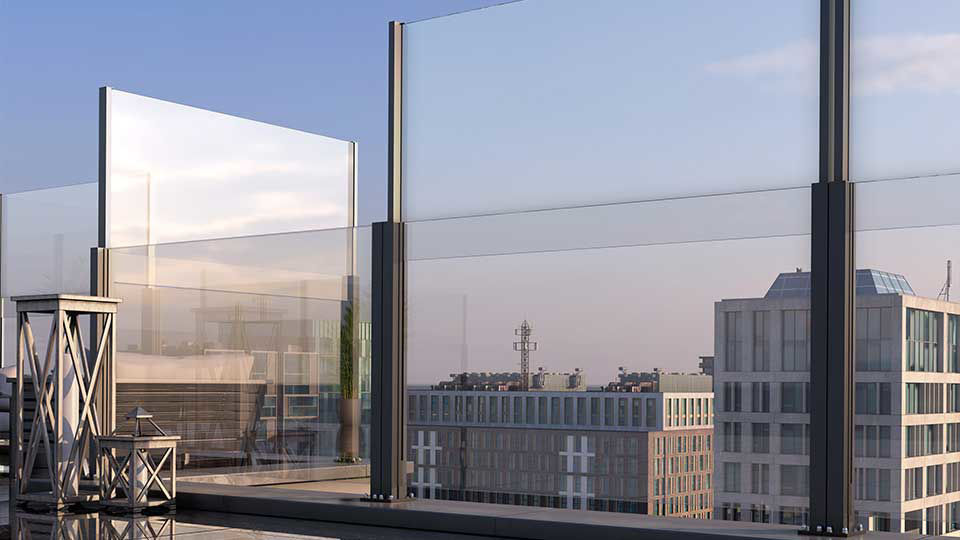

WindStop Smart is made of glass and aluminum, so it is maintenance free wherever you use it! The panel is pushed to height of 1.90 meters by 2 internal synchronized gas springs that are completely maintenance free. Tapping the moving glass from above starts a synchronized lift up of the glass. Windbreaker Windstop glass balustrade panels are divided equally according to the measurements in the application area. Glass balustrade panels can be produced from width of 80 cm and up to maximum width of 180 cm.

- Elegant Design

- Easy to Use

- Durable and Safe

- Fast Installation

Detail

TECHNICAL SPECIFICATIONS

Description

Height Adjustable Glass Railing, Balustrade, Windbrekaer

Principle of operation

Lifting by gas pressure

Material

Aluminium & Glass

Panel width

Min:80cm – Max:180cm

Panel height

110cm fixed bottom section / 190cm in elevated position

Glass thickness

Fixed glass (4+4mm), Liftable glass (4+4mm)

Fixing

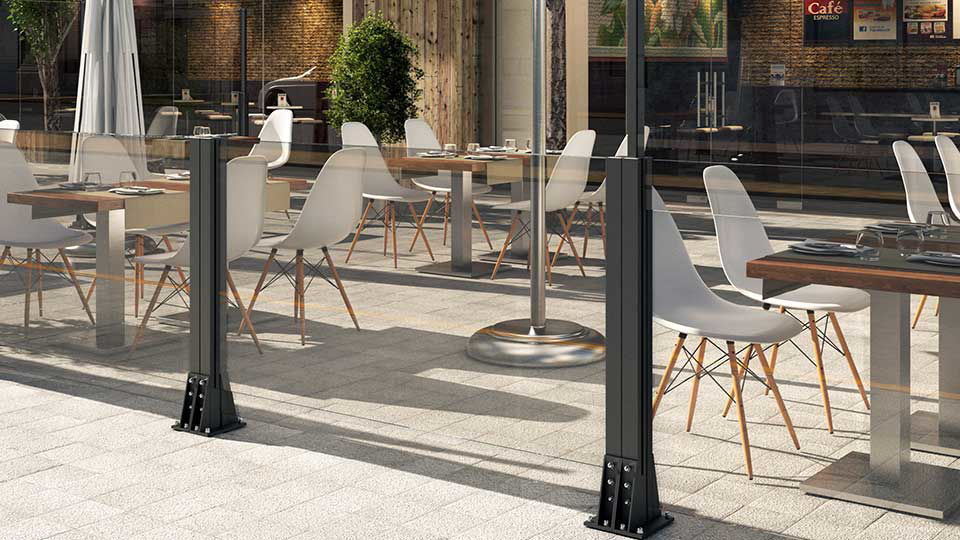

Steel base plates are fixed and has pre drilled holes for anchor screws

Surface coating

RAL Powder Coated 9010 White / 9005 Black / 7016 Anthracite Grey / 9006 Aluminium Grey are standard colors. Other RAL colors are also available.

Assembly

Windstop® panels are delivered ready-assembled

Weight

Standard panel 110cm x 150cm = 70Kg

Manufactured by

BTS Aluminium Turkey
