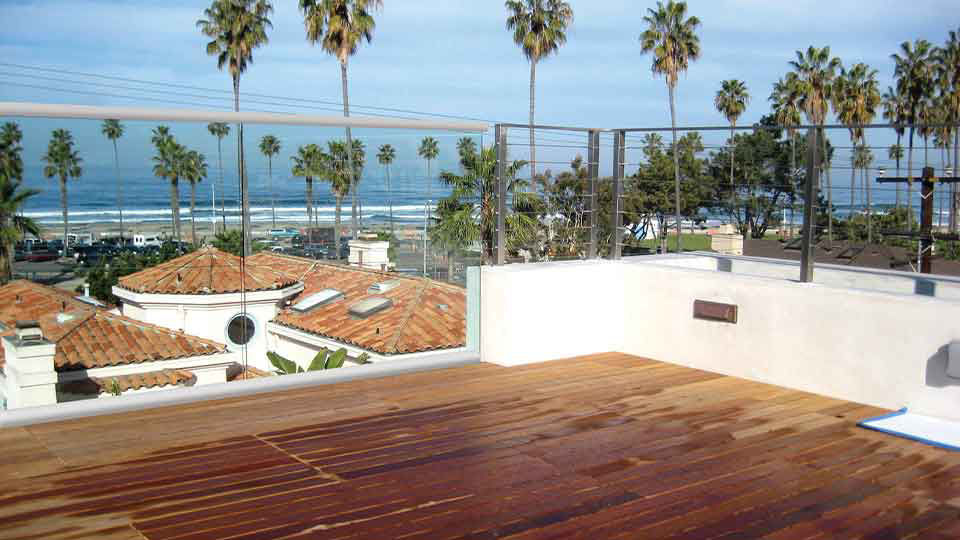

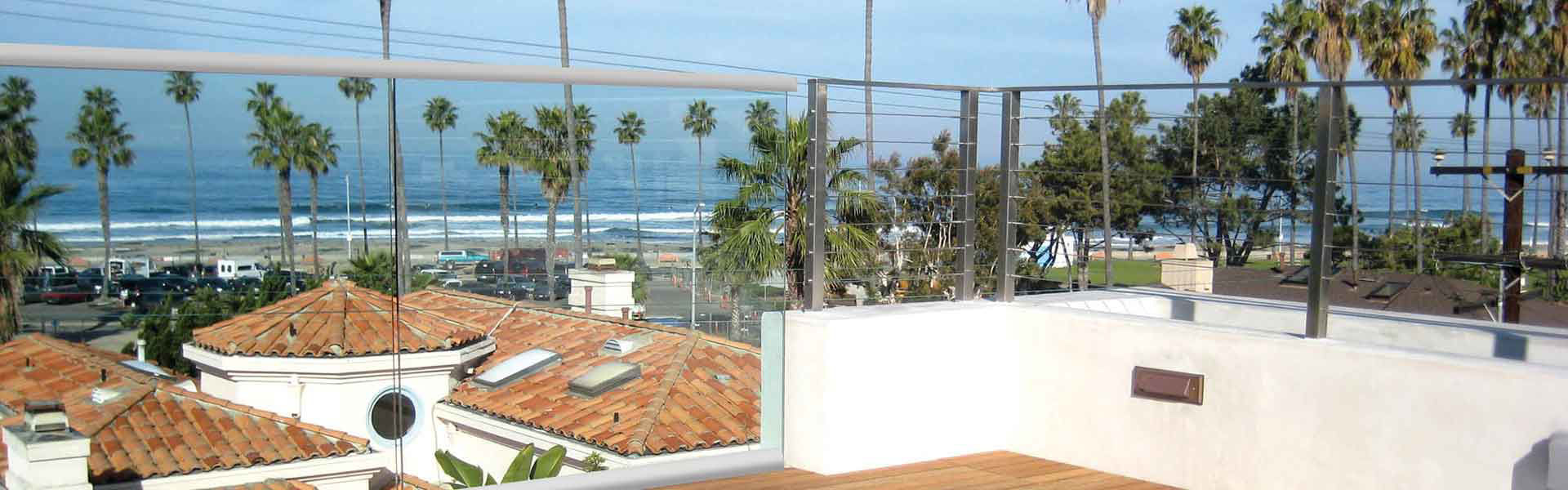

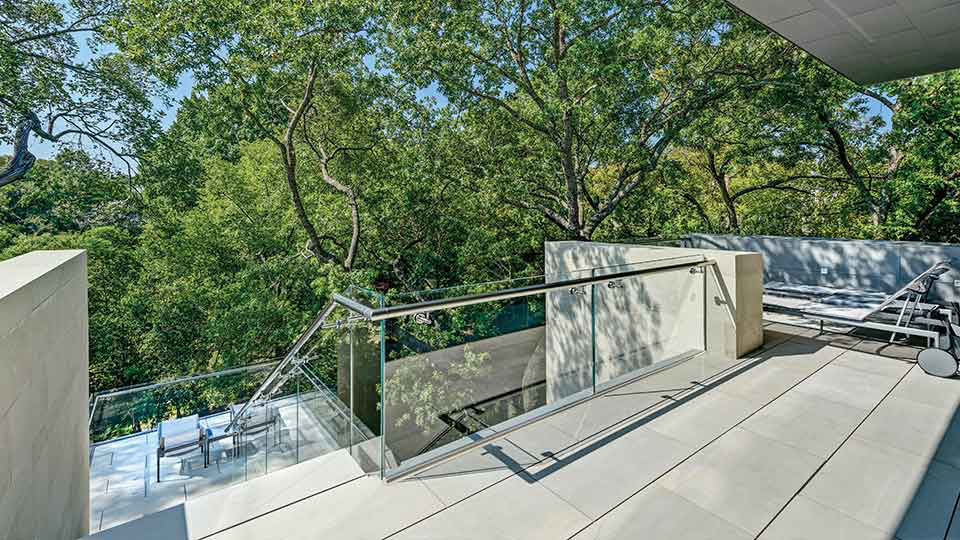

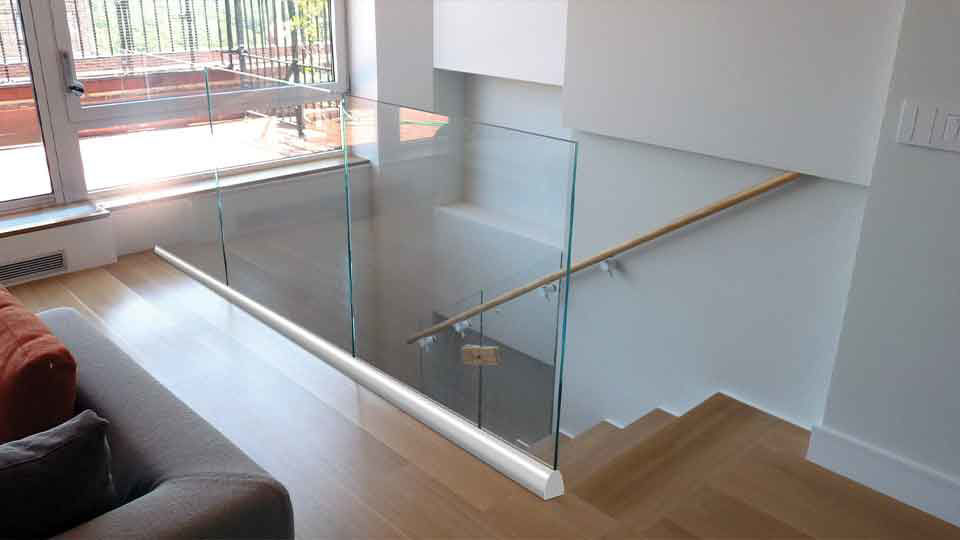

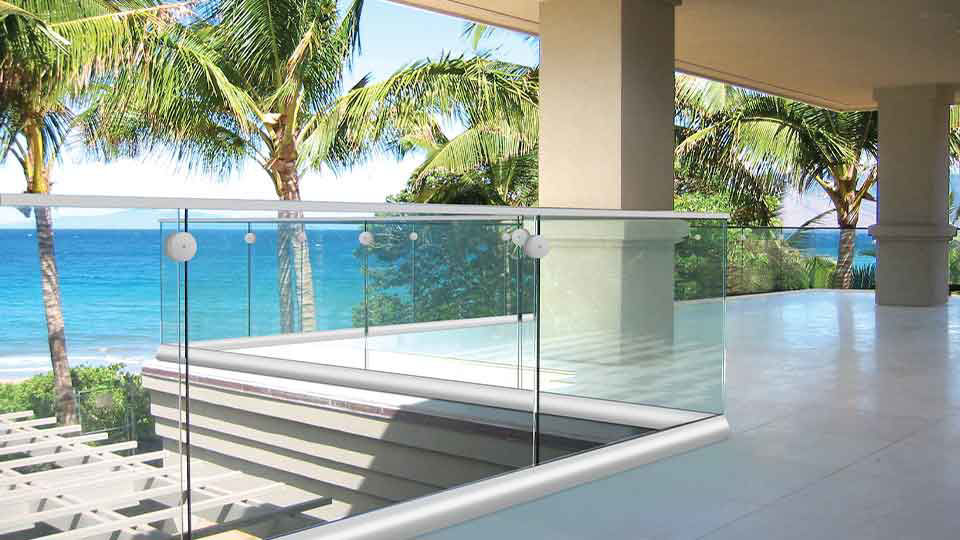

BTS S40 is economic type base shoe profile which is suitable for 8mm, 10mm and 12 mm glass thickness. Aluminium profile is pre-fabricated in 6m length. Simply fix the aluminium channel profile to the ground with anchor screws. Place the glass into the channel profile and fix it with pressing mechanism profile which is pre installed in S40 profile. S40 system gives aesthetic and sturdy results if it is supported with on-glass profiles connected to the wall.

  • Material: Aluminium
  • Installation Type: Full Length Aluminium Profile (l:600cm)
  • Mounting Type: Top mount
  • Cladding Option: Anodized / RAL Powder coated
  • Glass Thickness: 8mm / 10mm / 12mm compatible
Detail

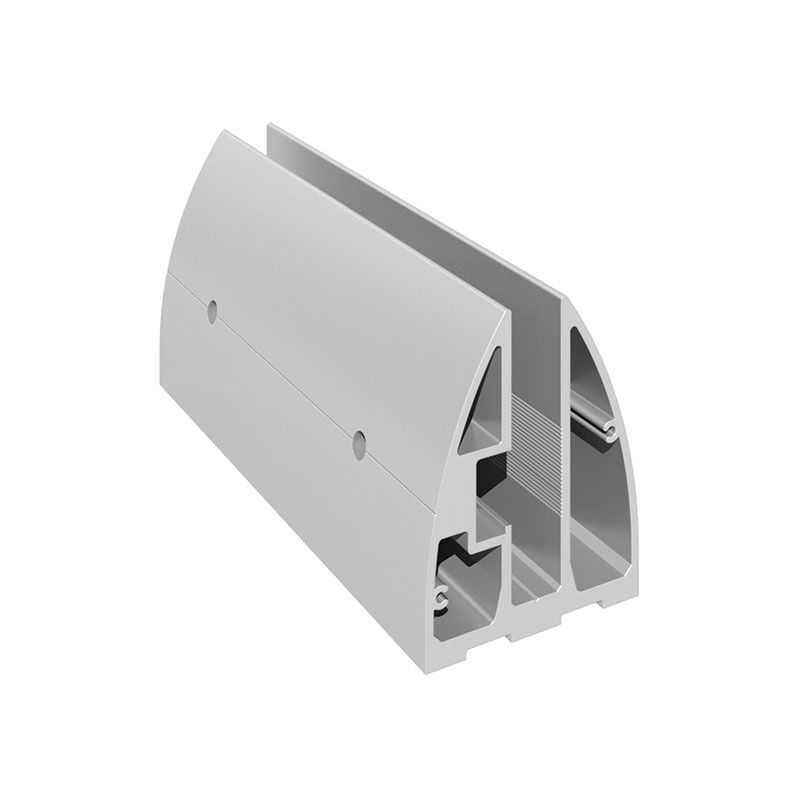

S40
BASE SHOE PROFILE & GLASS ADAPTER

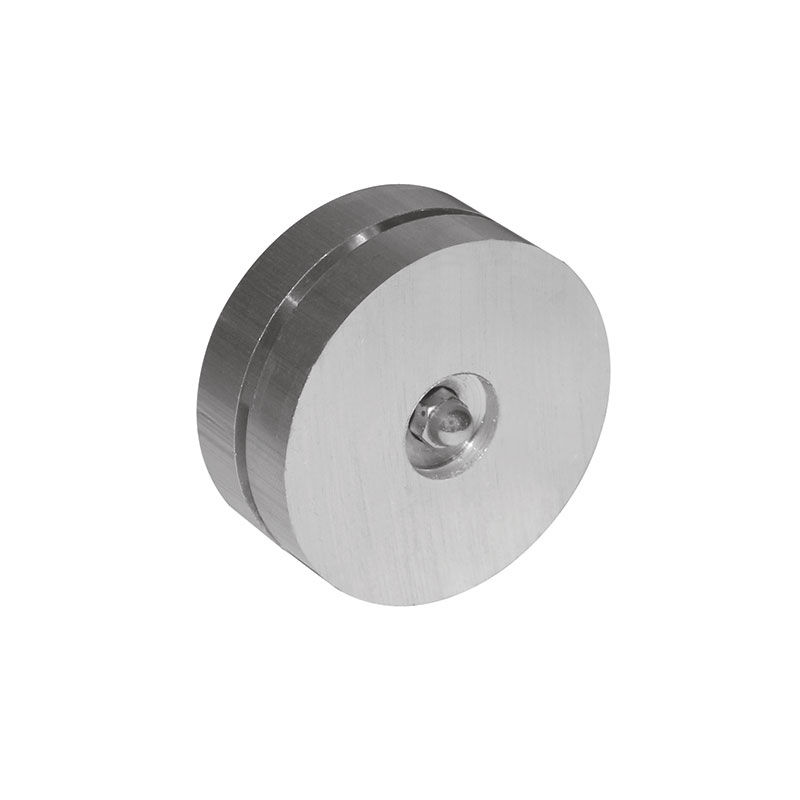

AK-5146
Glass Fixing Accessory
S40
TOP RAIL & ENDCAP
PR-5148
On-Glass Profile

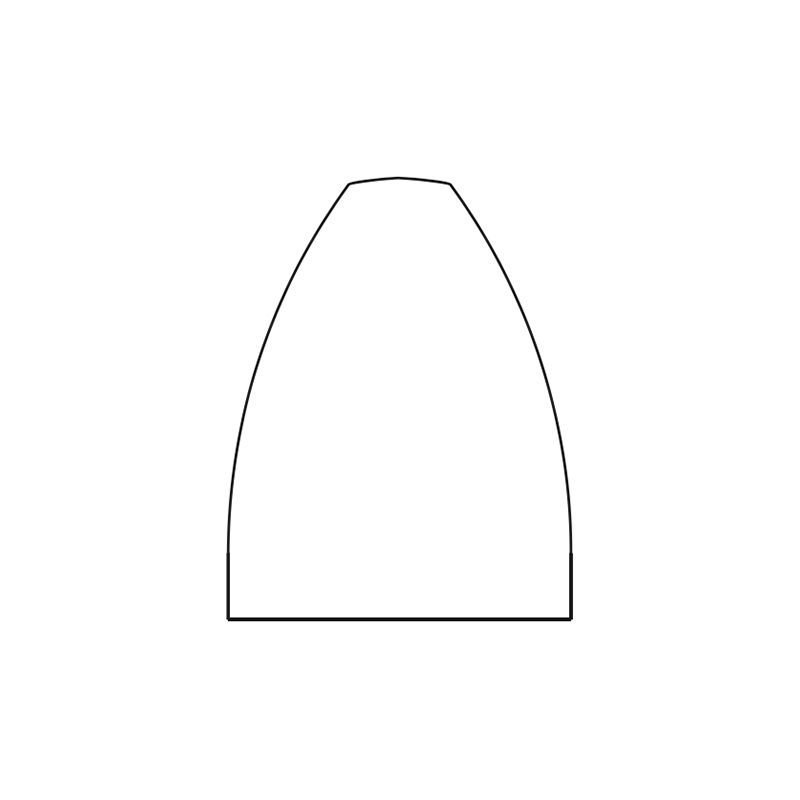

S40-6981K
Endcap
