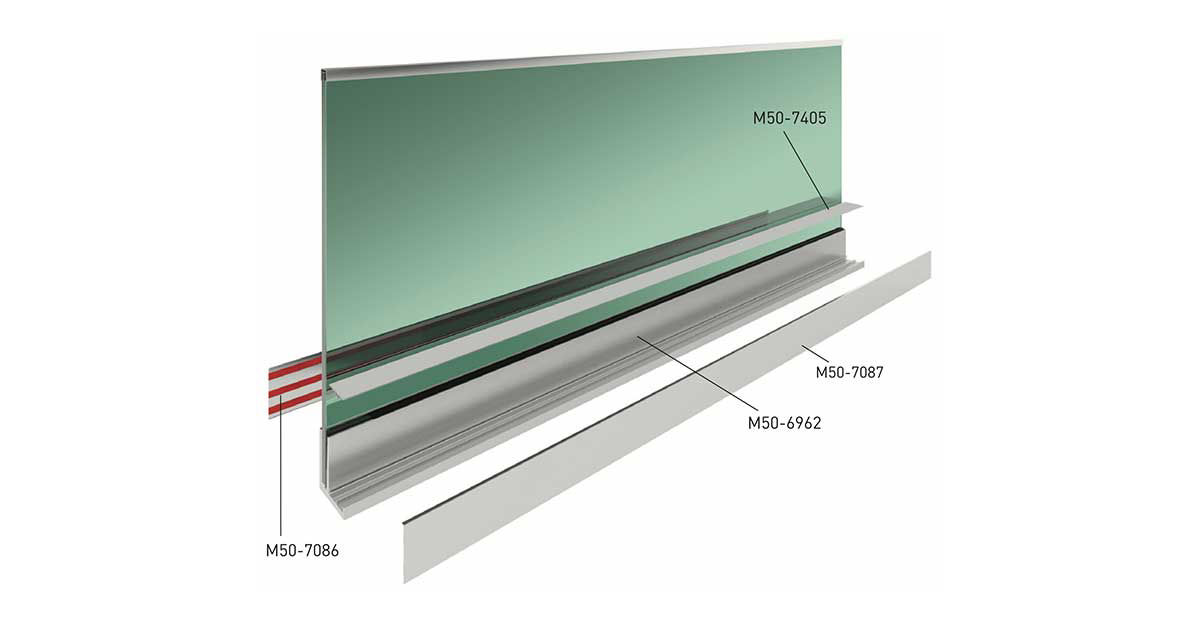

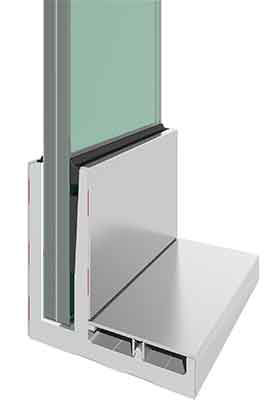

This F type glass railing profile is perfect for both interior and exterior balustrades that require top mounting or embedded mounting. Its F-shaped design makes it the optimal choice for applications under cement screeds during new constructions. When mounting directly on the floor, this shoe base can be covered by special cover profiles to hide the installation holes and screws. BTS M50 system is proper for 8+8mm/10+10mm glass. Simply fix to the floor of the balcony with an anchor bolt before inserting the glass panel. Place the glass into the profile and insert the plastic wedges with the help of special wedge fixing tool. You can cover the base shoe profile with aluminium cover claddings which can be in different colors and surface treatments…

  • Material: Aluminium
  • Installation Type: Full Length Aluminium Profile
  • Mounting Type: Top mount glass balustrade / Embedded type
  • Cladding Option: Anodized / RAL Powder coated
  • Glass Thickness: 8+8mm / 10+10mm compatible
Detail
M50

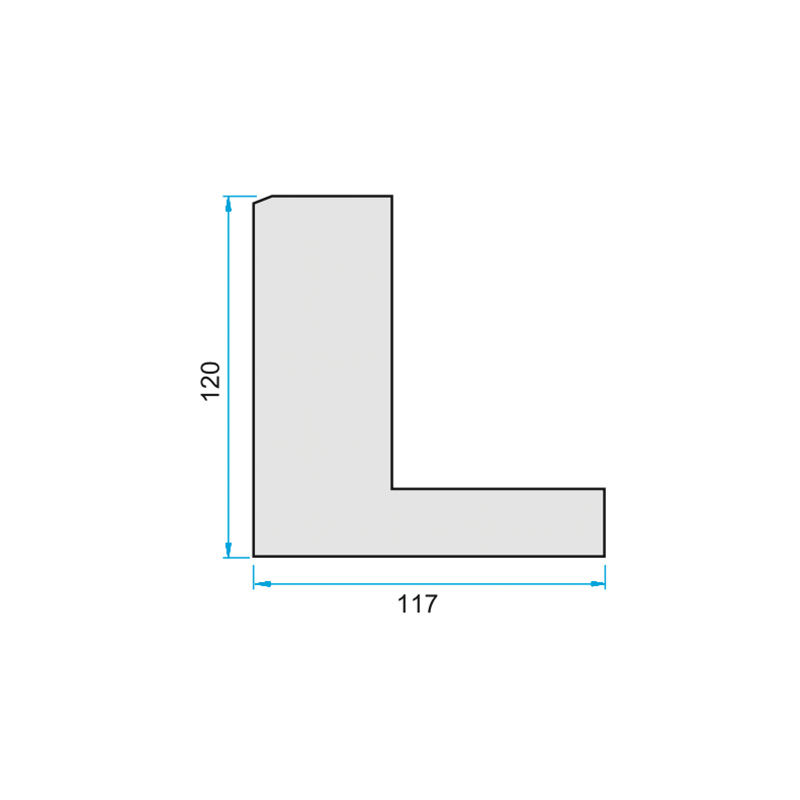

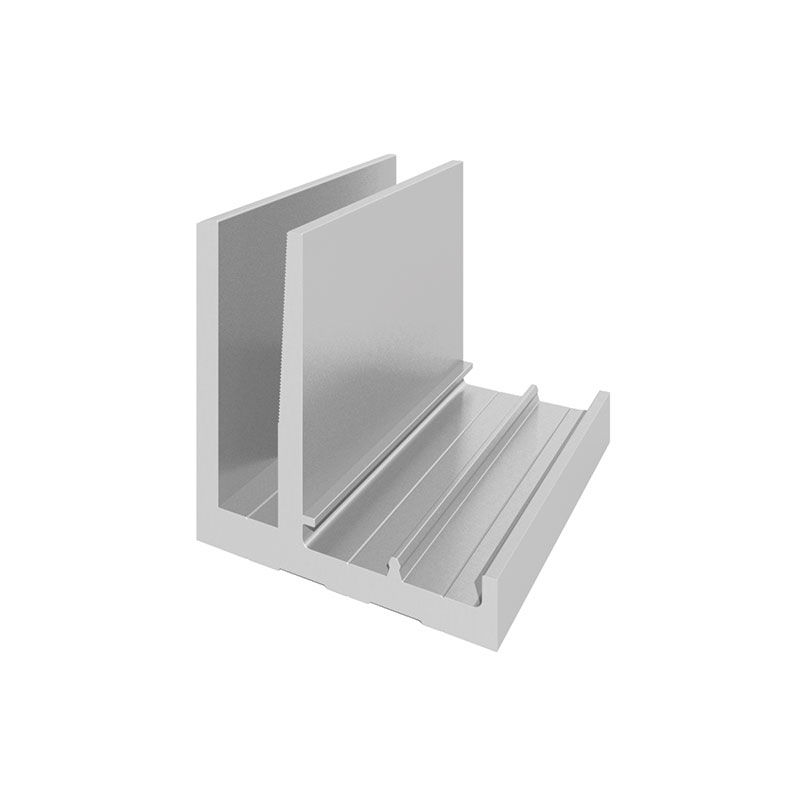

BASE SHOE PROFILE
M50

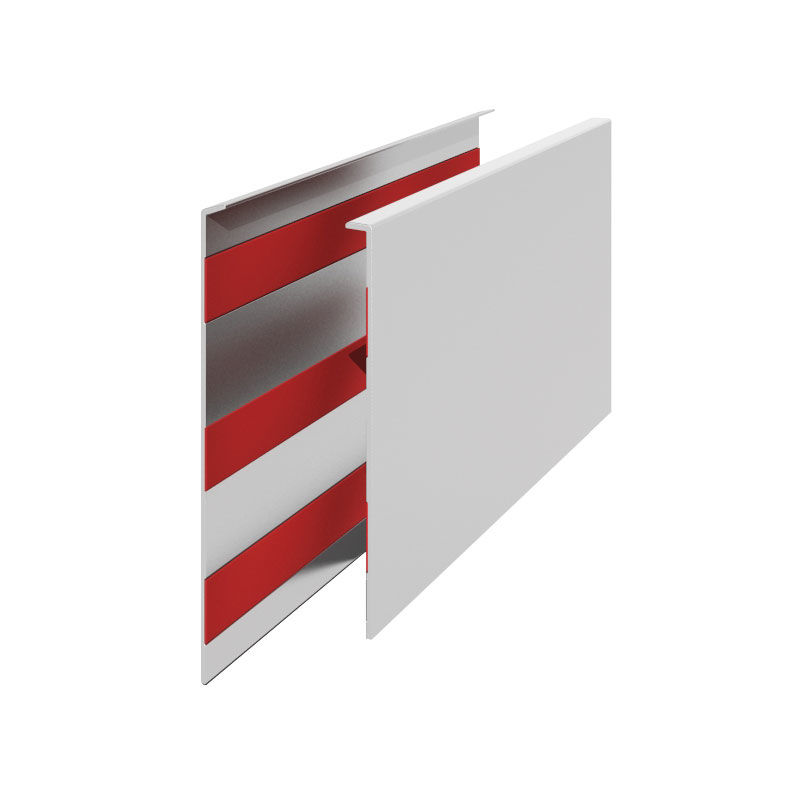

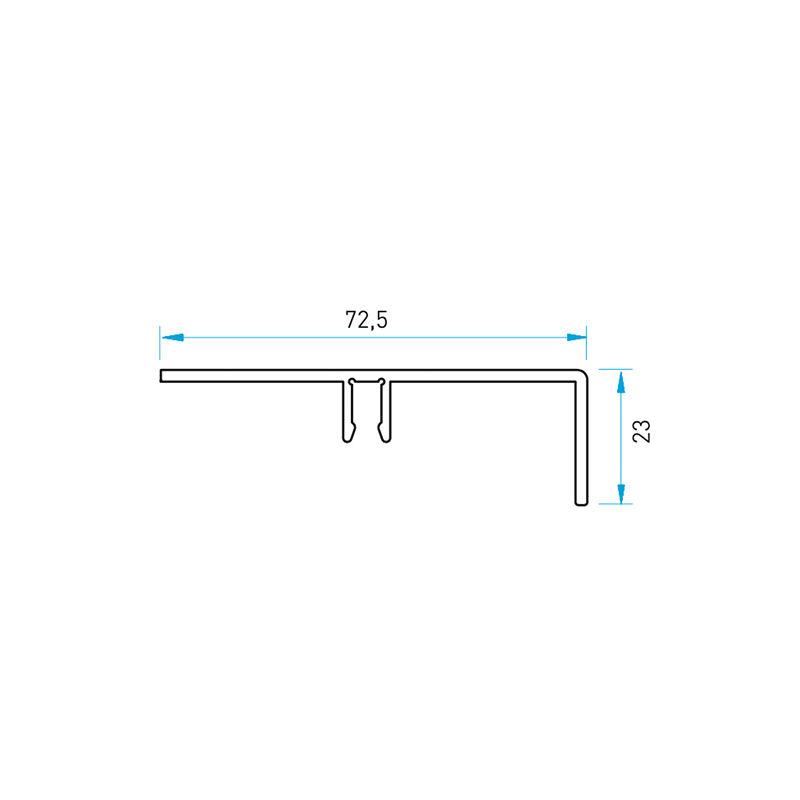

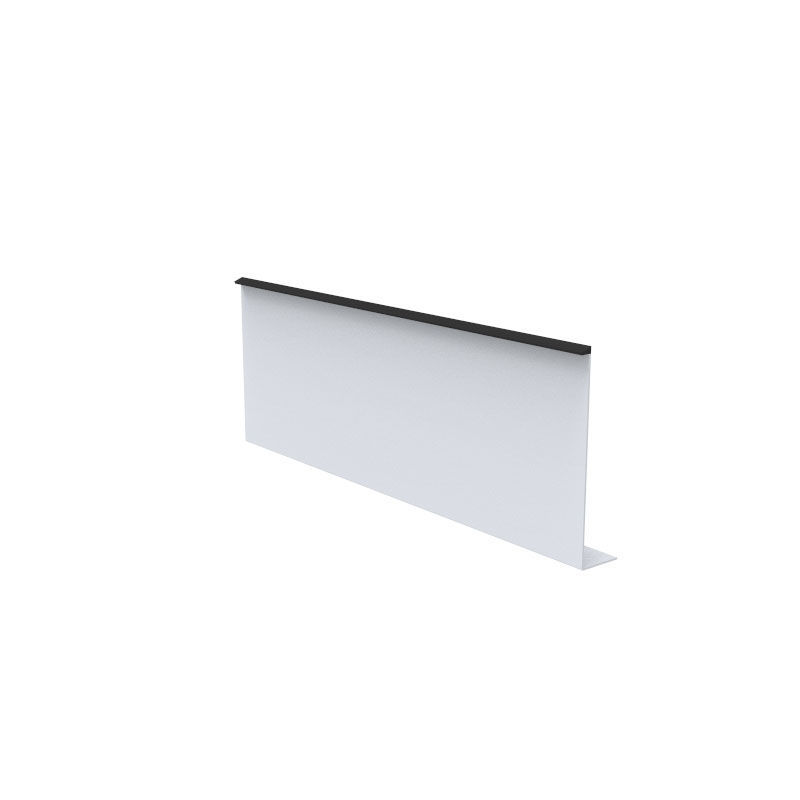

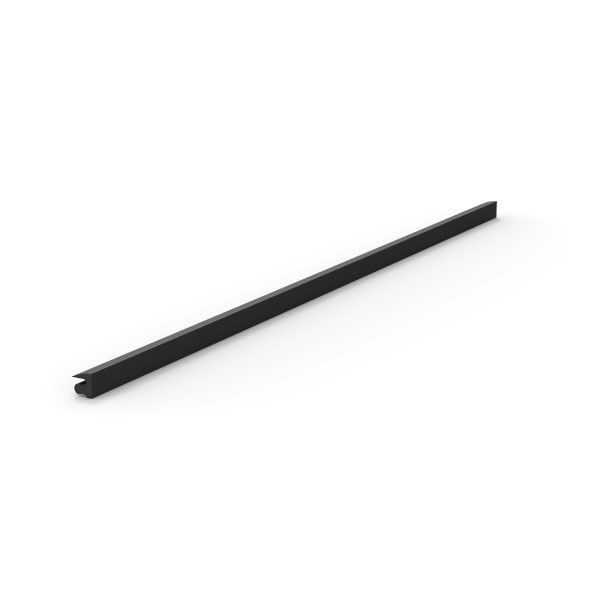

COVERS, ENDCAPS & GASKETS
M50
FIXING COMPONENTS
