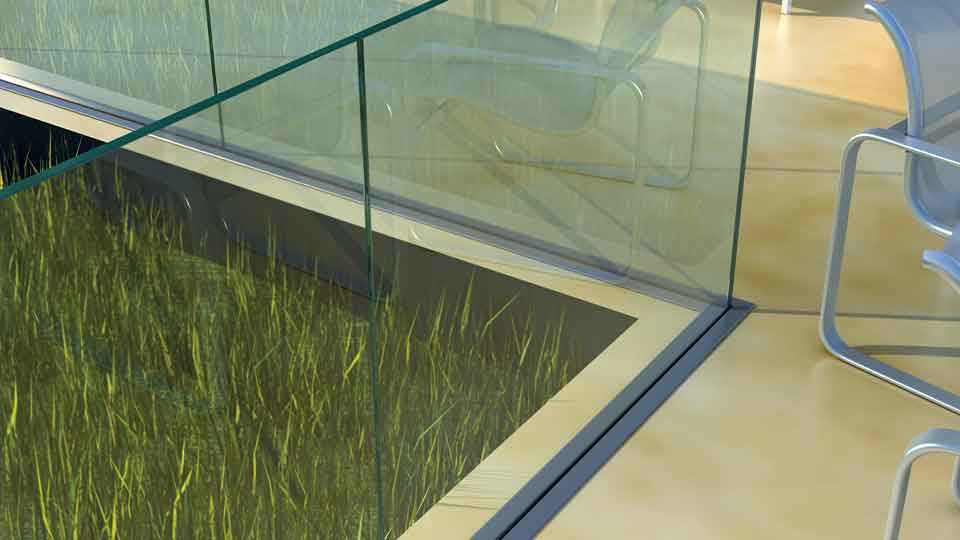

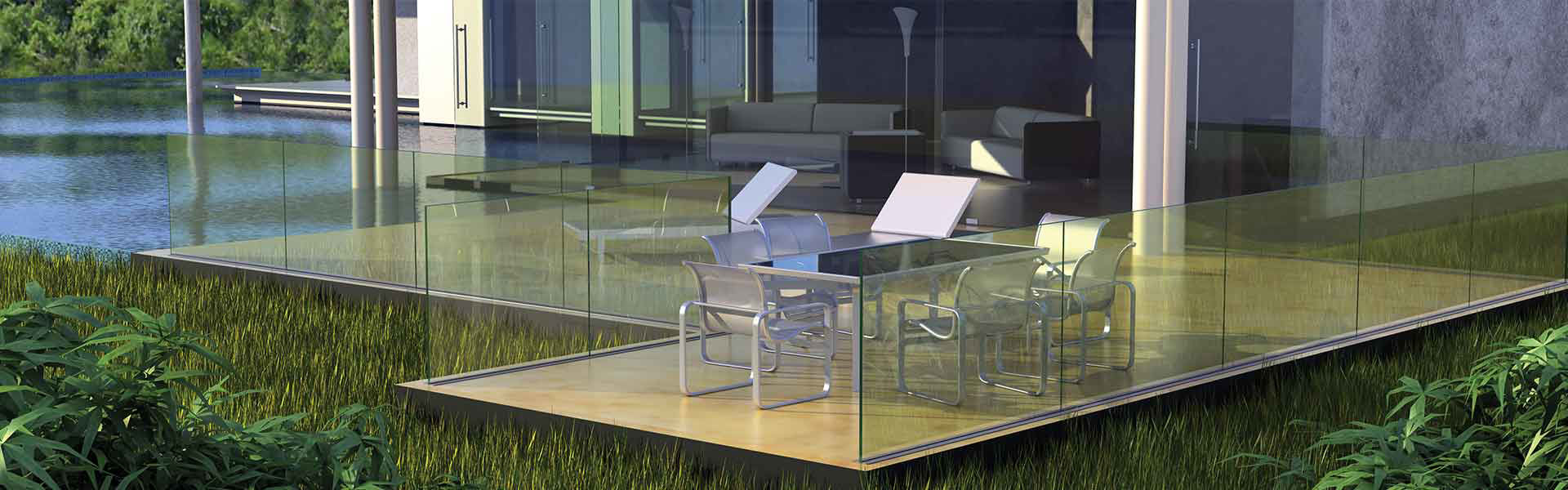

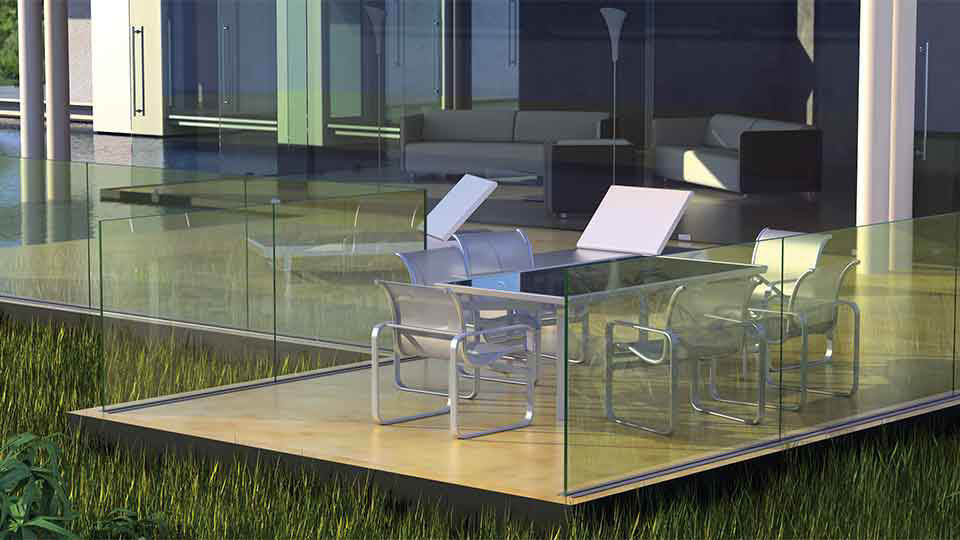

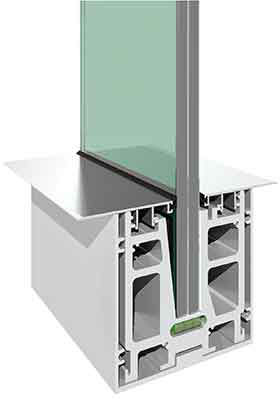

BTS CA50 Embedded fixing option is the most minimal option for fixing balustrades. The toughened laminated structural glass balustrade is fixed into a pre made and specially designed balustrade channel. This channel is designed to be installed below finished floor level for a frameless balustrade design. The balustrade can be fixed on the edge of the slab which allows water from the balcony to drain through the balustrade system. Place the specially designed U channel base profile then place aluminium base shoes inside the u channel. This method will help you to align non-flat channels This type of balustrading method can be used internally or externally and is a perfect option for balcony and terrace areas.

  • Material: Aluminium
  • Installation Type: 15cm & 30cm Base Shoes / Full Length Aluminium Profile
  • Mounting Type: Top mount glass balustrade
  • Cladding Option: Anodized / RAL Powder coated
  • Glass Thickness: 6+6mm / 8+8mm / 10+10mm compatible

Detail
CA50

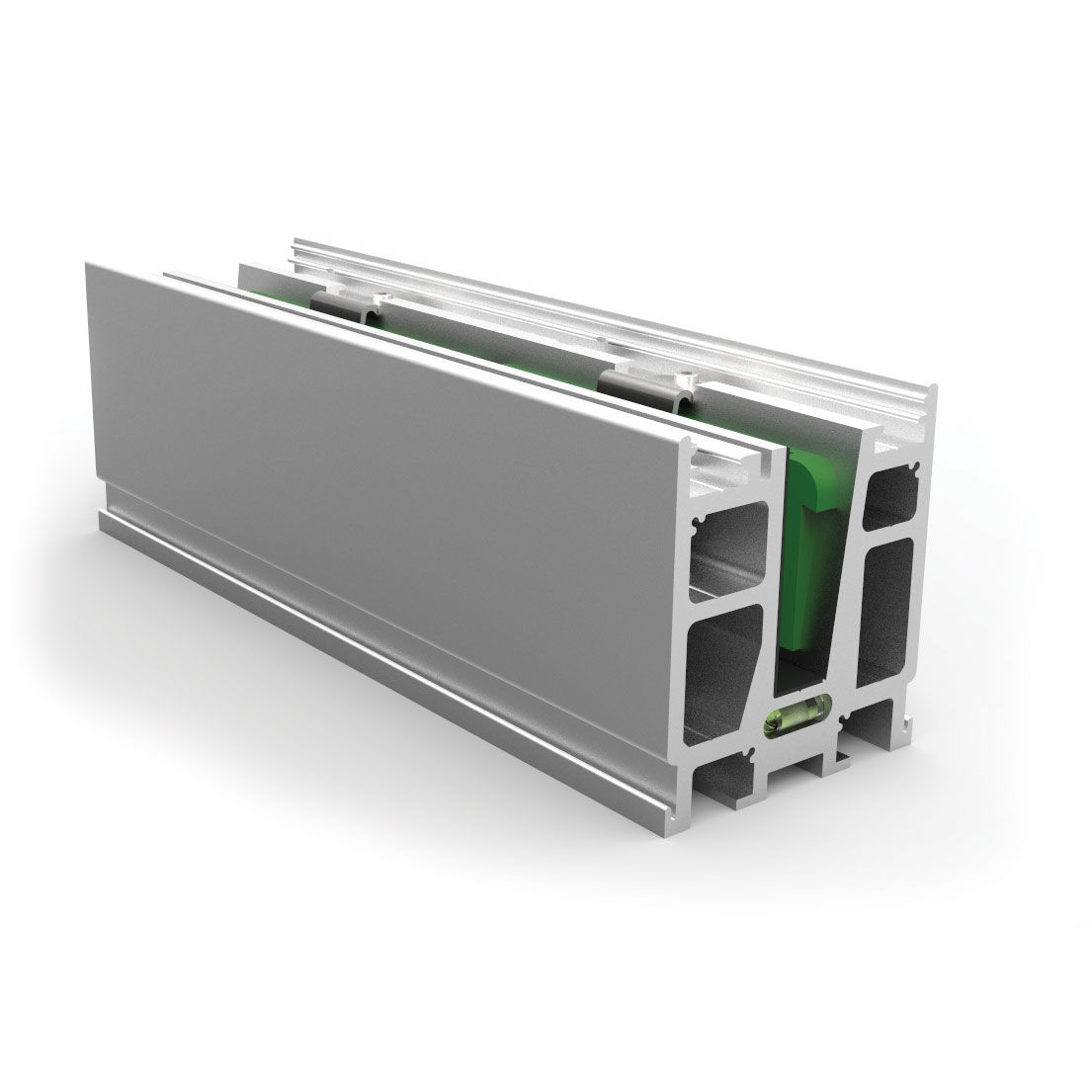

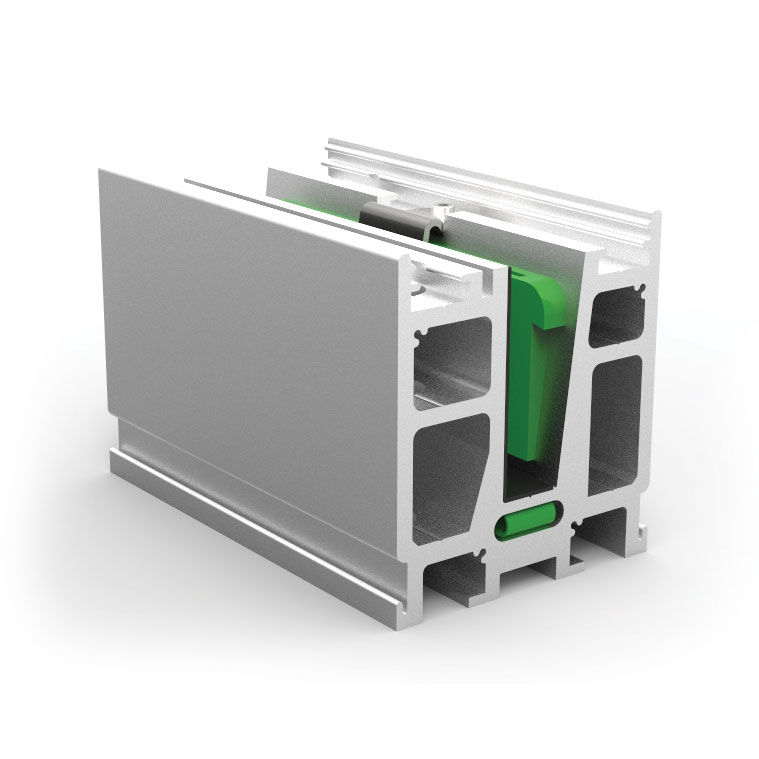

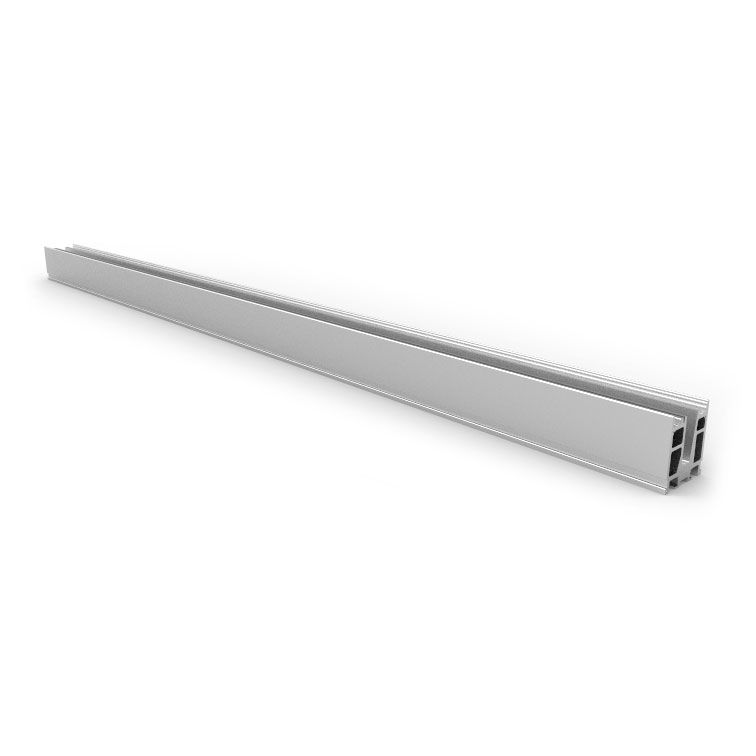

GLASS SUPPORT BASE SHOES
PR-6548
L: 200 cm
C50-KMS12

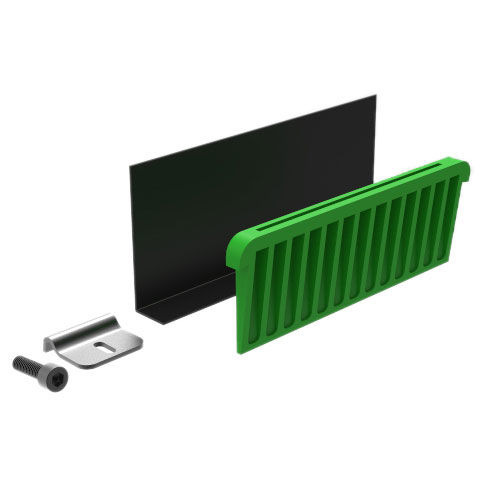

Wedge set for 6+6 mm Glass
C50-KMS16
Wedge set for 8+8 mm Glass
C50-KMS20
Wedge set for 10+10 mm Glass
CA50

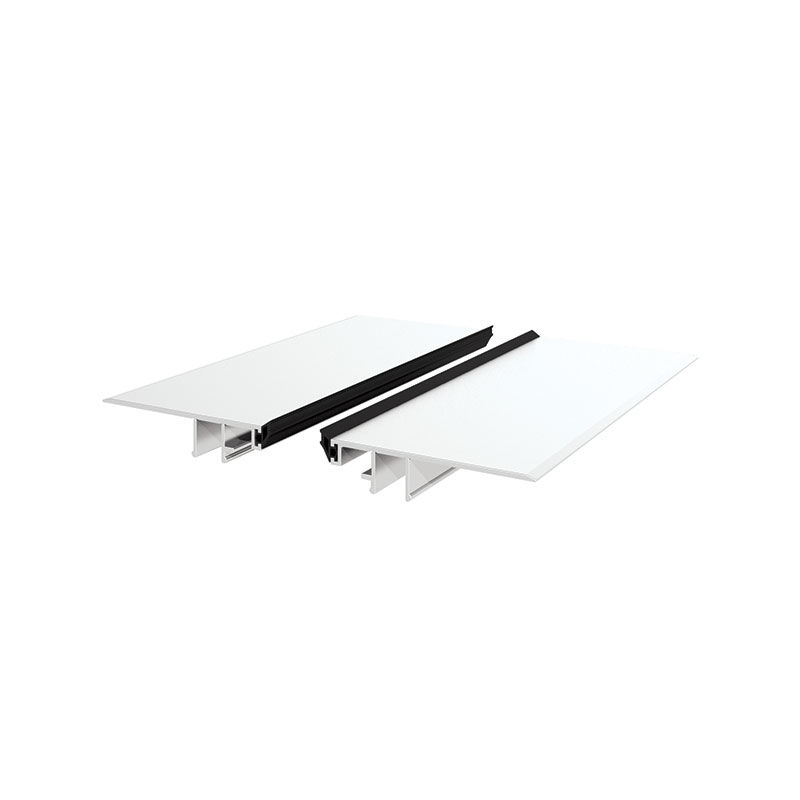

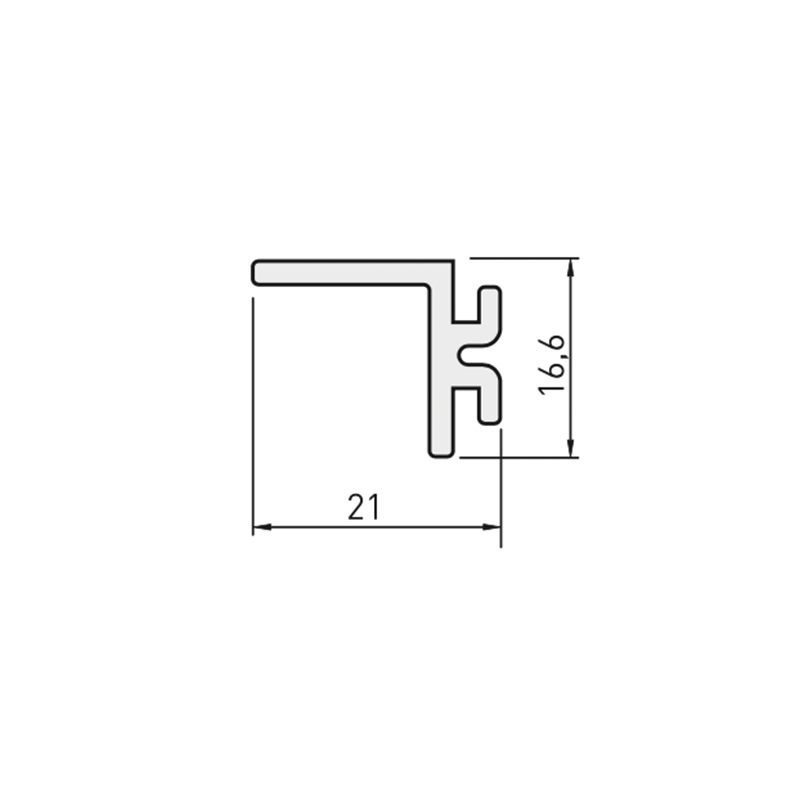

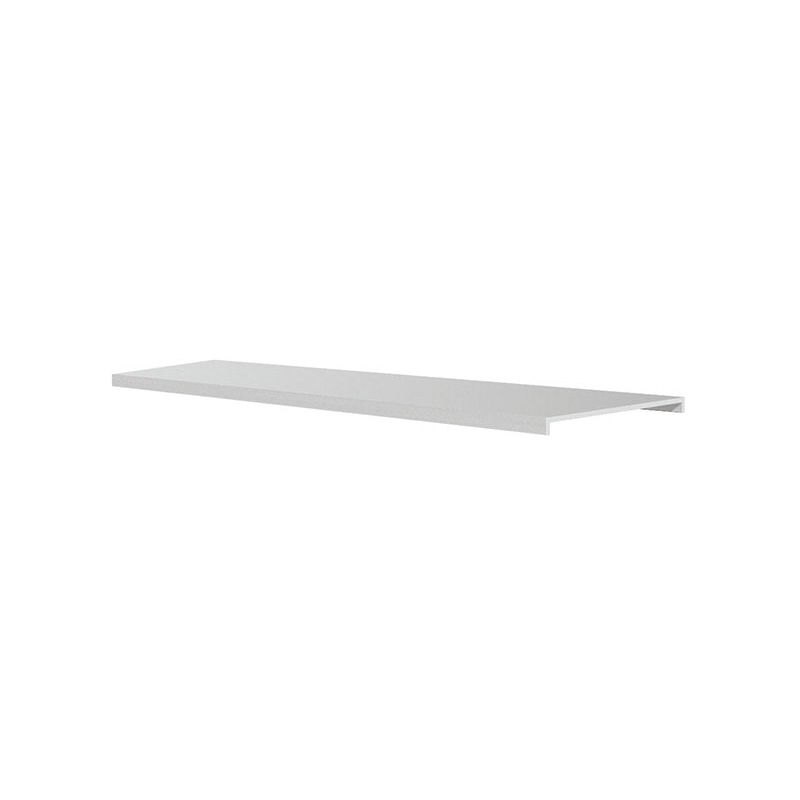

COVERS
CA50

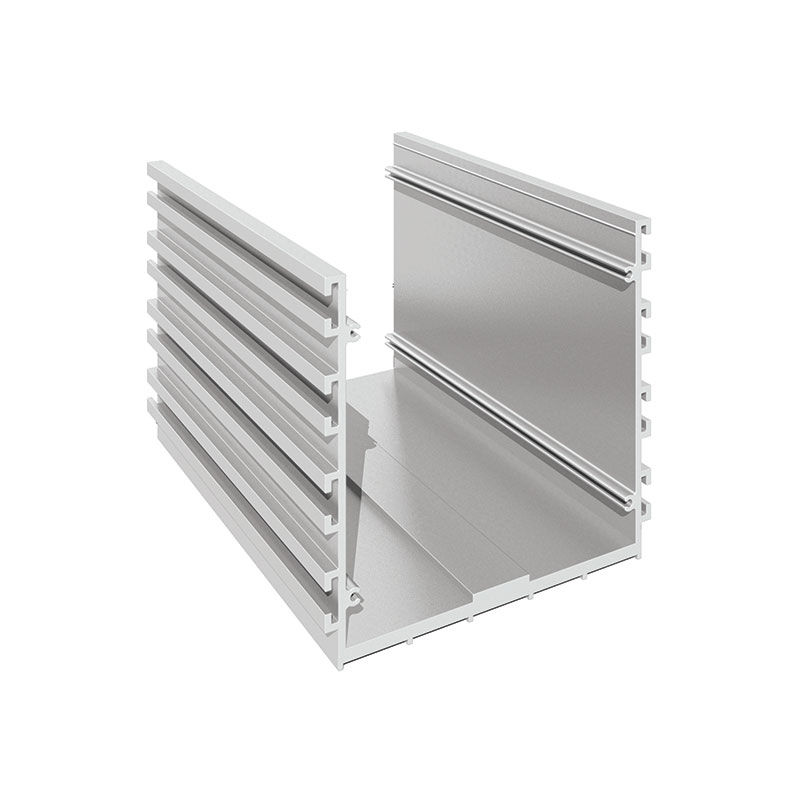

SYSTEM U CASE PROFILES
CA50
FIXING COMPONENTS
